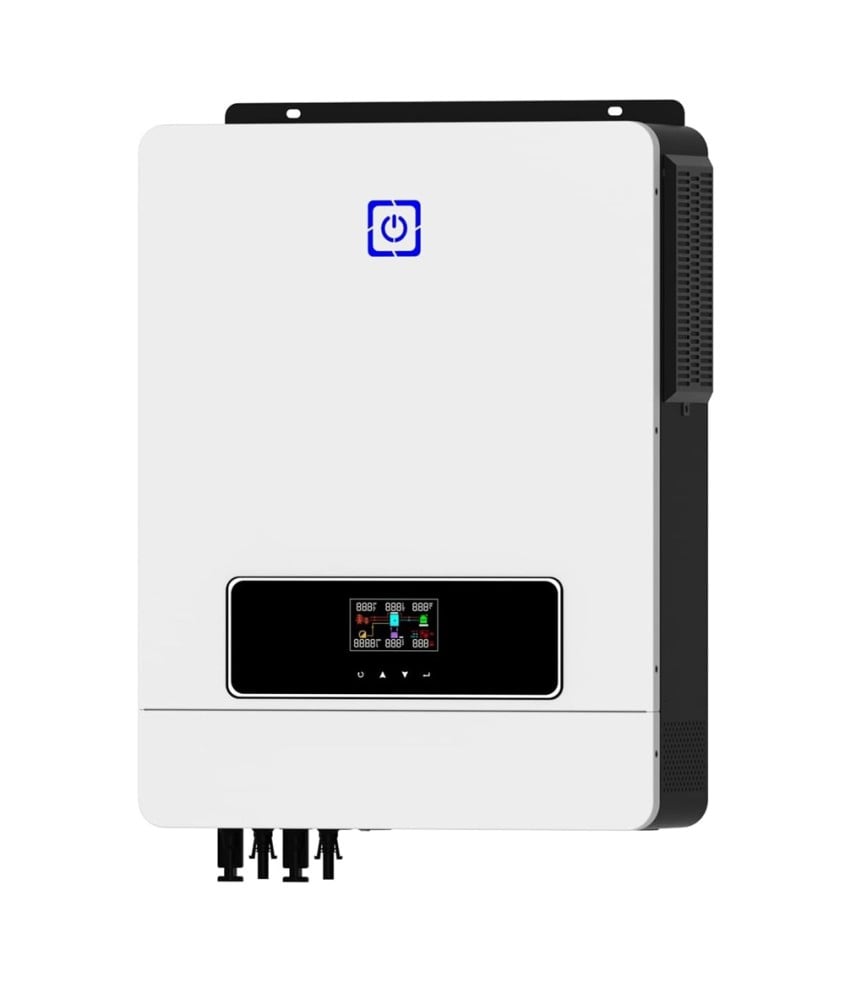

SUN5 8000w 48v 160A MPPT Hybrid
Model:SUN5 8200w 48v 160A MPPT Hybrid
Rated Power: 8200VA/ 8200W
Parallel Capacity: Yes, up to 6 Units
INPUT
Voltage: 230 VAC
Selected Voltage Range: 170 - 280 VAC (For Personal Computers) / 90 - 280 VAC (For Home Appliances)
Frequency Range:50 Hz / 60 Hz (Auto Sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode):230 VAC±5%
Surge Power: 160000VA
Efficiency (Peak): 90%-93%
Transfer Timer: 10 ms (For Personal Computer) / 20 ms (For Home Appliances)
Waveform: Pure sine wave
No Load Power Consumption: <70W
Digital Voltage (Optional):VDC±5%, 100W
BATTERY
Battery Voltage: 48 VDC
Floating Charge Voltage:54 VDC
Overcharge Charge Protection:66 VDC
SOLAR CHARGER & AC CHARGER

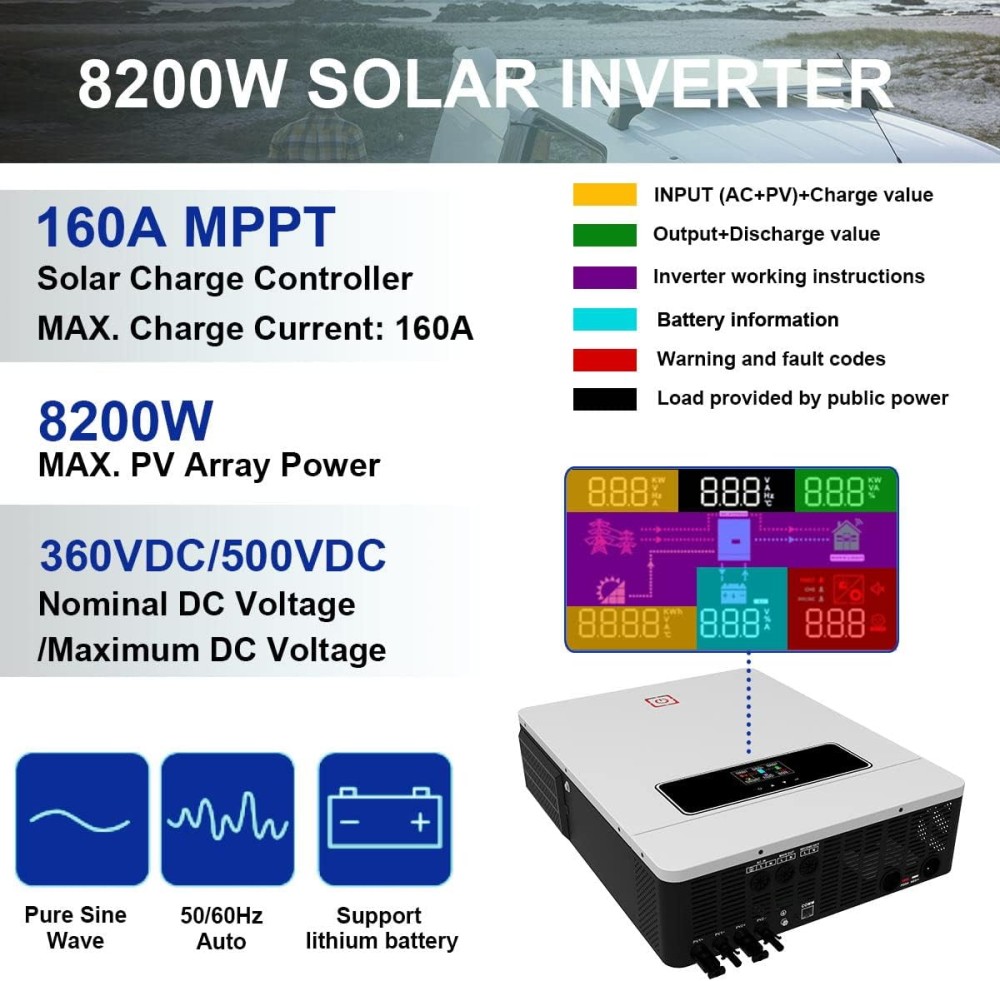

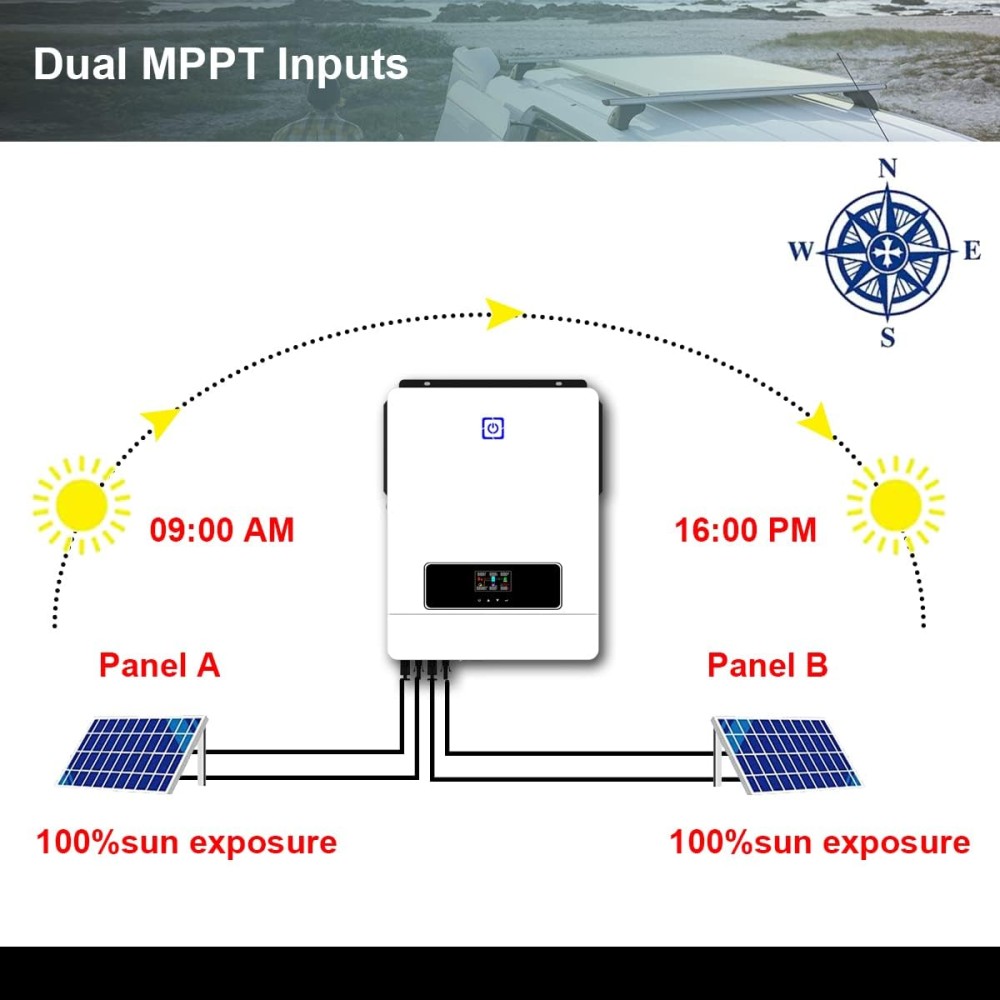

Solar Charger Type: MPPT
(4000x2)PV Maximum Array power: 8000W
Maximum PV Array Open Circuit Voltage:500VDC
MPP Range @ Operating Voltage: 90-450 VDC
Maximum Solar Charger Current: 80 VDC
Maximum AC Charger Current: 80 VDC
Maximum Charger Current: 80 VDC
PHYSICAL
Dimensions DxWxH (mm):147.4 x 432.5 x 553.6
Net Weights (Kgs):14.1
Communication Interface: USB / R232 / RS485 / Wifi / Dry-Contact
OPERATING ENVIRONMENT
Humidity: 5% to 95% Relative Humidity (Non-Condensing)
Operating Temperature: 0°C to 55°C
Storage Temperature: -15°C to 60°C
WARRANTY
One year
